Products Catalog
High Performance Ball Valves
![SER.70-79 SER.70-79](https://chicagovalves.com/wp-content/uploads/2021/03/SER.70-79-400x400.png)
![null](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

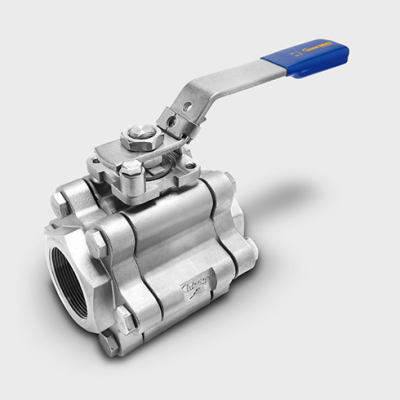

SERIES 70
API 608 3PC STANDARD PORT BALL VALVE
Size Range: 1/2”-4”
Body Material: Carbon Steel, Alloy 20,
316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN, Delrin®, PEEK
Ends:
Threaded, Socket Weld, Butt Weld, Flanged
Max Pressure: Vacuum to 1975/1480psi
Temp: -50 – 600°F
![SER.70-79 SER.70-79](https://chicagovalves.com/wp-content/uploads/2021/03/SER.70-79-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
SERIES 79
API 608 3PC FULL PORT BALL VALVE
Size Range: 1/4”-4”
Body Material: Carbon Steel, Alloy 20,
316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN, Delrin®, PEEK
Ends:
Threaded, Socket Weld, Butt Weld, Flanged
Max Pressure: Vacuum to 1975/1480psi
Temp: -50 – 600°F
![SER.HP70-79 SER.HP70-79](https://chicagovalves.com/wp-content/uploads/2021/03/SER.HP70-79-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

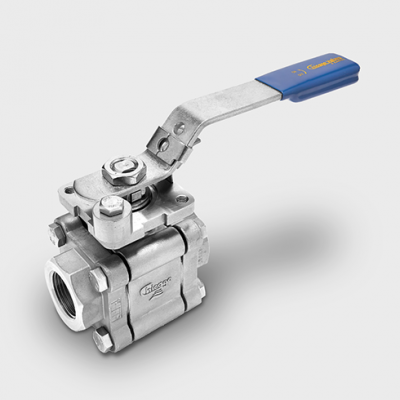

SERIES HP70
HIGH PRESSURE API 608 3PC STANDARD PORT BALL VALVE
Size Range: 1/2”-2½”
Body Material:
Carbon Steel, 316 Stainless Steel
Seat Material: Delrin®, PEEK
Ends:
Threaded, Socket Weld, Butt Weld, Flanged
Max Pressure: 3200 psi
Temp: -50 – 600°F
![SER.HP70-79 SER.HP70-79](https://chicagovalves.com/wp-content/uploads/2021/03/SER.HP70-79-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
SERIES HP79
HIGH PRESSURE API 608 3PC FULL PORT BALL VALVE
Size Range: 1/4”-2”
Body Material:
Carbon Steel, 316 Stainless Steel
Seat Material: Delrin®, PEEK
Ends:
Threaded, Socket Weld, Butt Weld, Flanged
Max Pressure: 3200 psi
Temp: -50 – 600°F
![SER.82 SER.82](https://chicagovalves.com/wp-content/uploads/2017/06/SER.82-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 82
FLANGED FULL PORT BALL VALVE API 608 CLASS 150/300/600
Size Range: 1/2”-12”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: TFM, XN, RTFE, PEEK
Class: 150, 300, 600
Max Pressure: 285psi
Max Temp: -50°F – 450°F
![SER.89 SER.89](https://chicagovalves.com/wp-content/uploads/2021/04/SER.89-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

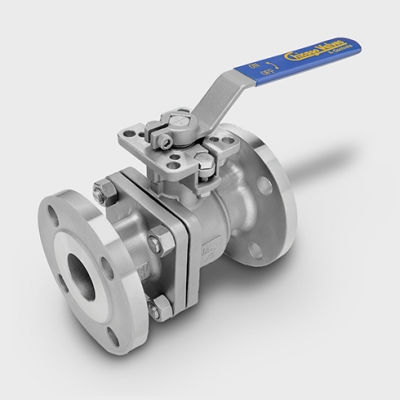

SERIES 89
FLANGED FULL PORT BALL VALVE CLASS 150/300
Size Range: 1/2”-12”
Body Material: Carbon Steel, Alloy 20,
316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN, PEEK
Class: 150, 300
Max Pressure: 285/740 psi
Temp: -50 – 600°F
![SER.16 SER.16](https://chicagovalves.com/wp-content/uploads/2021/03/SER.16-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

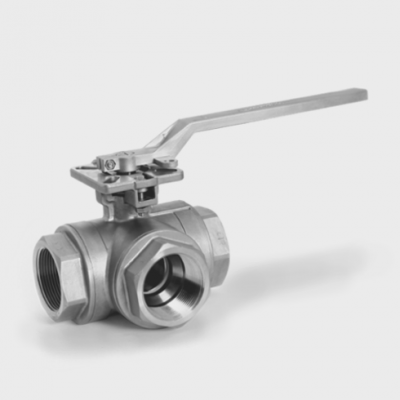

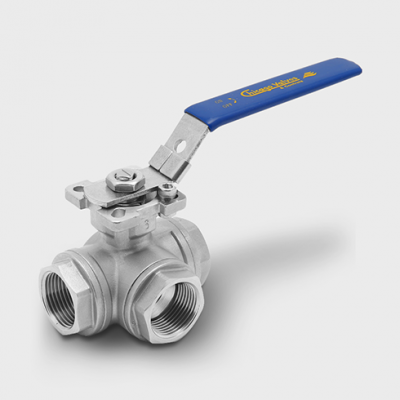

SERIES 16
3 WAY BALL VALVE
Size Range: 1/4”-2”
Body Material: 316 Stainless Steel
Ends: Threaded
Max Pressure: 1000 CWP
Temp: -50 – 450°F
![SER.17 SER.17](https://chicagovalves.com/wp-content/uploads/2021/04/SER.17-1-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

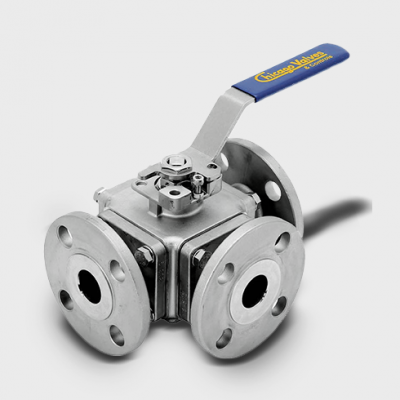

SERIES 17
3 & 4 WAY BALL VALVE
Size Range: 1/2”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Ends: Flanged
Max Pressure: 600 CWP
Temp: -50 – 500°F
Fire Safe Ball Valves
![SER.70-79 SER.70-79](https://chicagovalves.com/wp-content/uploads/2021/03/SER.70-79-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series FS70
FIRE SAFE 3 PIECE STANDARD PORT BALL VALVE
Size Range: 1/4”-4”
Body Material: Carbon Steel, 316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN
Class: 800, 600
Max Pressure: 1975/1480psi
Temp: -50 – 550°F
![SER.70-79 SER.70-79](https://chicagovalves.com/wp-content/uploads/2021/03/SER.70-79-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series FS79
FIRE SAFE 3 PIECE FULL PORT BALL VALVE
Size Range: 1/4”-4”
Body Material: Carbon Steel, 316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN
Class: 800, 600
Max Pressure: 1975/1480psi
Temp: -50 – 550°F
![SER.FS27 SER.FS27](https://chicagovalves.com/wp-content/uploads/2021/03/SER.FS27-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

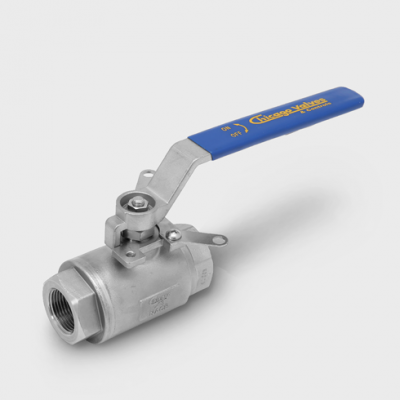

Series FS27
FIRE SAFE SEAL WELD CLASS 1500
Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: Delrin®, PEEK
Ends: Threaded, Socket Weld
Max Pressure: 3600psi
Max Temp: Delrin® 180°F | PEEK 500°F
![SER.FS29 SER.FS29](https://chicagovalves.com/wp-content/uploads/2021/03/SER.FS29-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

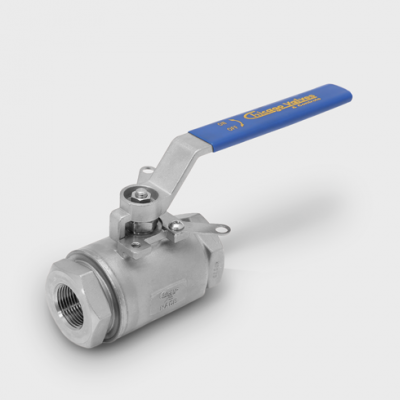

SERIES FS29
FIRE SAFE SEAL WELD CLASS 2500
Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: Delrin®, PEEK
Ends: Threaded, Socket Weld
Max Pressure: 6000psi
Max Temp: Delrin® 180°F | PEEK 500°F
![SER.81.R22 SER.81.R22](https://chicagovalves.com/wp-content/uploads/2022/02/SER.81.R22-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series FS81
FLANGED STANDARD PORT
API 608 BALL VALVE
Size Range: 1”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Class: 150
Max Pressure: 285psi
Max Temp: -50°F – 450°F
![SER.82 SER.82](https://chicagovalves.com/wp-content/uploads/2017/06/SER.82-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series FS82
FIRE SAFE FLANGED FULL PORT API 608 BALL VALVE
Size Range: 1/2”-12”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: TFM, XN, RTFE, PEEK
Class: 150, 300, 600
Max Pressure: 285psi
Max Temp: -50°F – 450°F
![SER.89 SER.89](https://chicagovalves.com/wp-content/uploads/2021/04/SER.89-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
SERIES FS89
FIRE SAFE FLANGED FULL PORT API 608 BALL VALVE CLASS 150/300
Size Range: 1/2”-12”
Body Material: Carbon Steel, Alloy 20,
316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN
Class: 150, 300
Max Pressure: 285/740psi
Temp: -50 – 550°F
Seal Weld Ball Valves
![SER.26 SER.26](https://chicagovalves.com/wp-content/uploads/2021/03/SER.26-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

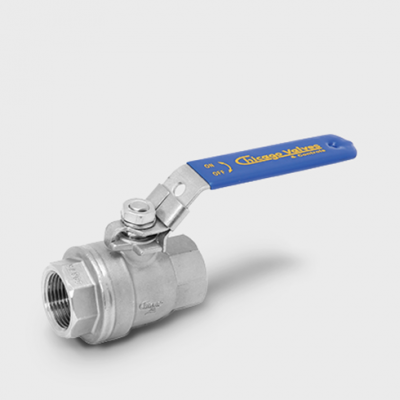

Series 26
FULL PORT 2000/1500 CWP SEAL WELD BALL VALVE
Size Range: 1/4”-3”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure: 2000 CWP (1/4”-2”)
Max Pressure: 1500 CWP (2½”-3”)
Temp: -50° – 500°F
![SER.N26.3 SER.N26.3](https://chicagovalves.com/wp-content/uploads/2019/06/SER.N26.3-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series N26
FULL PORT 2000/1500/1000 CWP SEAL WELD BALL VALVE
Size Range: 1/4”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure: 2000 CWP (1/4”-2”),
1500 CWP (3”), 1000 CWP (4”)
Temp: -50° – 500°F
![SER.FS27 SER.FS27](https://chicagovalves.com/wp-content/uploads/2021/03/SER.FS27-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 27
CLASS 1500 SEAL WELD
BALL VALVE
Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: Delrin®, PEEK
Ends: Threaded, Socket Weld
Max Pressure: 3600psi
Max Temp: Delrin® 180°F | PEEK 500°F
![SER.FS29 SER.FS29](https://chicagovalves.com/wp-content/uploads/2021/03/SER.FS29-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 29
CLASS 2500 SEAL WELD
BALL VALVE
Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: Delrin®, PEEK
Ends: Threaded, Socket Weld
Max Pressure: 6000psi
Max Temp: Delrin® 180°F | PEEK 500°F
Multi-Purpose Ball Valves
![SER.81.R22 SER.81.R22](https://chicagovalves.com/wp-content/uploads/2022/02/SER.81.R22-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 81
FLANGED STANDARD PORT
API 608 BALL VALVE
Size Range: 1”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Class: 150
Max Pressure: 285psi
Max Temp: -50°F – 450°F
![SER.10 SER.10](https://chicagovalves.com/wp-content/uploads/2021/03/SER.10-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

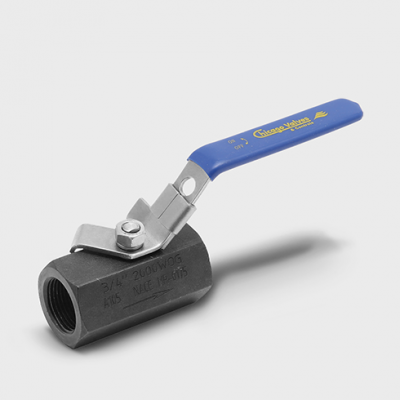

Series 10
ONE PIECE UNIBODY FORGED
BALL VALVE
Size Range: 1/4”-2”
Body Material: Forged Steel A105
Seat Material: RPTFE
Ends: Threaded
Max Pressure: 2000 CWP
Max Temp: -50°F – 450°F
![SER.11 SER.11](https://chicagovalves.com/wp-content/uploads/2021/03/SER.11-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

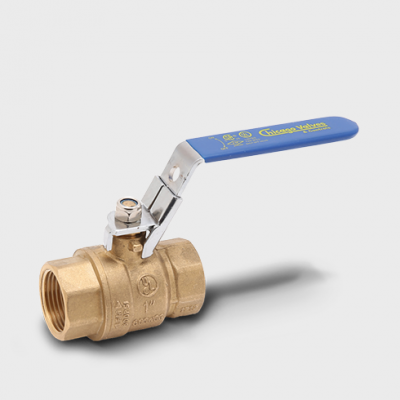

Series 11
TWO PIECE FULL PORT BRASS
BALL VALVE
Size Range: 1/4”-4”
Body Material: Forged Brass
Seat Material: PTFE
Ends: Threaded
Max Pressure: 600 CWP
Max Temp: 400°F
![SER.12 SER.12](https://chicagovalves.com/wp-content/uploads/2021/04/SER.12-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

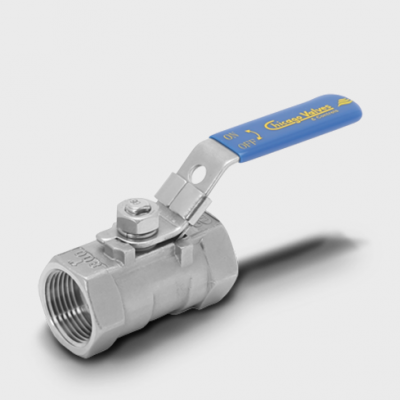

Series 12
ONE PIECE UNIBODY REDUCED PORT BALL VALVE
Size Range: 1/4”-2”
Body Material: 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure (1/4″-1¼”): 1000 CWP
Max Pressure (1½”-2″): 800 CWP
Max Temp: -50°F – 450°F
![SER.N20.2 SER.N20.2](https://chicagovalves.com/wp-content/uploads/2019/06/SER.N20.2-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series N20
TWO PIECE FULL PORT 1000 CWP BALL VALVE
Size Range: 1/4”-3”
Body Material: 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure: 1000 CWP
Max Temp: -50°F – 450°F
* Locking Device Handle
* Blowout Proof Stem
![SER.N20.XST.2 SER.N20.XST.2](https://chicagovalves.com/wp-content/uploads/2021/07/SER.N20.XST_.2-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series N20 XST
TWO PIECE FULL PORT 150CWP SAFETY EXHAUST BALL VALVE
Size Range: 1/4”-3”
Body Material: 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure: 1000 CWP
Max Temp: -50°F – 450°F
* Locking Device Handle
* Blowout Proof Stem
![SER.24 SER.24](https://chicagovalves.com/wp-content/uploads/2021/03/SER.24-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

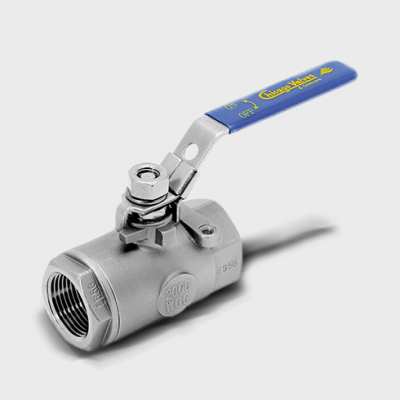

Series 24
TWO PIECE STD. PORT 2000/1500 CWP BALL VALVE
Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE, K-Seat
Ends: Threaded
Max Pressure (1/4″-1¼”): 2000 CWP
Max Pressure (1½”-2″): 1500 CWP
Max Temp: -50°F – 450°F
![SER.25 SER.25](https://chicagovalves.com/wp-content/uploads/2021/03/SER.25-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

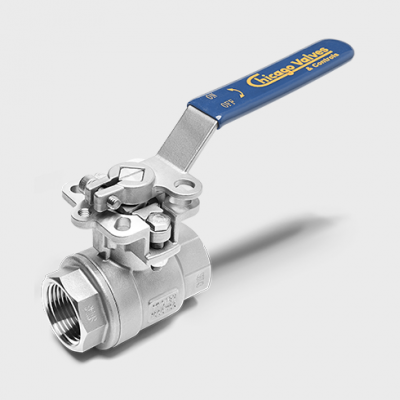

Series 25
2-PIECE FULL PORT BALL VALVE DIRECT MOUNT – DMA
Size Range: 1/4”-2”
Body Material: 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure: 1000 CWP
Max Temp: -50°F – 450°F
![SER.33 SER.33](https://chicagovalves.com/wp-content/uploads/2021/03/SER.33-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

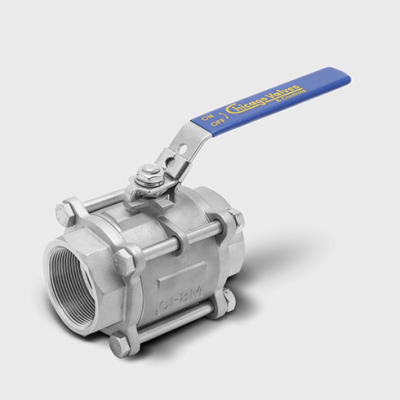

Series 33
3-PIECE FULL PORT BALL VALVE
Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded, Socket Weld
Max Pressure: 1000 CWP
Max Temp: -50°F – 450°F
![SER.34 SER.34](https://chicagovalves.com/wp-content/uploads/2021/04/SER.34-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

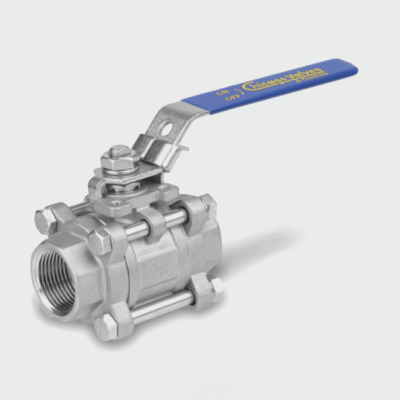

Series 34
3-PIECE FULL PORT BALL VALVE
Size Range: 1/4”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded, Socket Weld
Max Pressure: 1000 CWP
Max Temp: -50°F – 450°F
![SER.35 SER.35](https://chicagovalves.com/wp-content/uploads/2021/03/SER.35-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

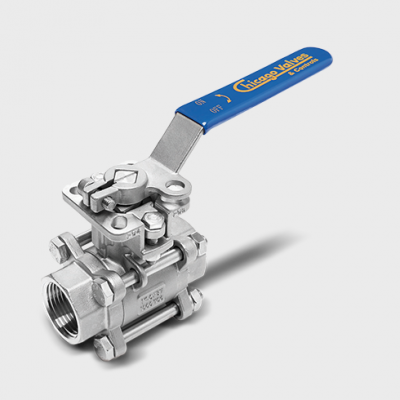

Series 35
3-PIECE FULL PORT BALL VALVE DIRECT MOUNT – DMA
Size Range: 1/4”-4”
Body Material: 316 Stainless Steel & Carbon Steel Ends
Seat Material: RTFE
Ends: Threaded
Max Pressure (1/4″-2″): 1000 CWP
Max Pressure (2½”-4″): 800 CWP
Max Temp: -50°F – 450°F
![SER.36 SER.36](https://chicagovalves.com/wp-content/uploads/2022/12/SER.36-1-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 36
3-PIECE FULL PORT BALL VALVE SANITARY, TUBE CONNECTION, DIRECT MOUNT – DMA
Size Range: 1/2”-4”
Body & Ends Material: 316 Stainless Steel
Seat Material: TFM, PTFE
Ends: TRI Clamps, Short/Extended Butt Weld
Max Pressure (1/2″-2″): 1000 CWP
Max Pressure (2½”-4″): 600 CWP
Max Temp: -50°F – 450°F
Butterfly Valves
![SER.Butterfly SER.Butterfly](https://chicagovalves.com/wp-content/uploads/2017/06/SER.Butterfly-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 55
RESILIENT SEATED BUTTERFLY
• 200 psi rating (1½”-12”)
• 150 psi rating (14”-48”)
• Epoxy coated body
• Lockable handle
• ISO 5211 mounting pad
• API 609
Multi-Turn Valves
![SER.28 SER.28](https://chicagovalves.com/wp-content/uploads/2021/03/SER.28-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

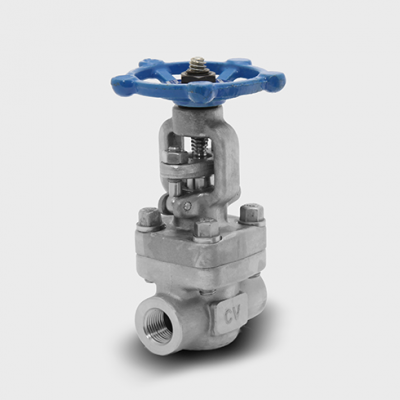

Series 28
FORGED STEEL CLASS 800
GATE VALVE
Size Range: 1/4”-2”
Body Material: Forged Steel, 316L Forged Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 1975 psi
Max Temp: 850°F
![SER.38 SER.38](https://chicagovalves.com/wp-content/uploads/2021/03/SER.38-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

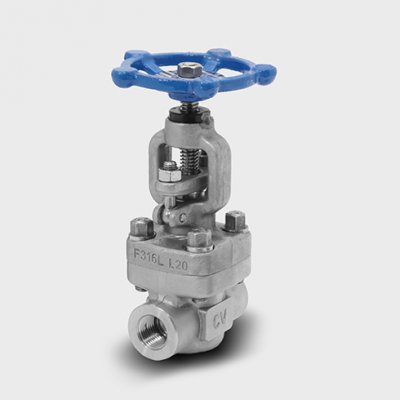

Series 38
FORGED STEEL CLASS 800
GLOBE VALVE
Size Range: 1/4”-2”
Body Material: Forged Steel, 316L Forged Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 1975 psi
Max Temp: 850°F
![SER.48 SER.48](https://chicagovalves.com/wp-content/uploads/2021/03/SER.48-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

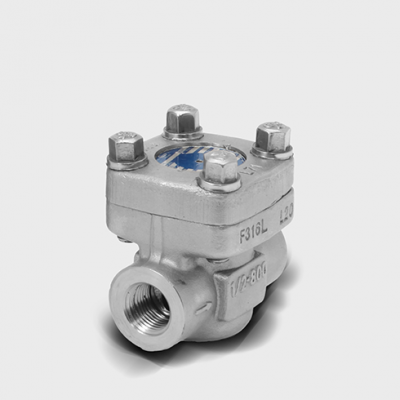

Series P48/48
FORGED STEEL CLASS 800
PISTON/CHECK VALVE
Size Range: 1/4”-2”
Body Material: Forged Steel, 316L Forged Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 1975 psi
Max Temp: 850°F
![SER.28F SER.28F](https://chicagovalves.com/wp-content/uploads/2024/04/SER.28F.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 28F
FLANGED FORGED STEEL CLASS 150/300/600 GATE VALVE
Size Range: ½”-1½”
Body Material: Forged Steel
Ends: Class150/300/600 Flange
Max Pressure: 1480 psi
Max Temp: 850°F
![SER.38F SER.38F](https://chicagovalves.com/wp-content/uploads/2024/04/SER.38F.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 38F
FLANGED FORGED STEEL CLASS 150/300/600 GLOBE VALVE
Size Range: ½”-1½”
Body Material: Forged Steel
Ends: Class150/300/600 Flange
Max Pressure: 1480 psi
Max Temp: 850°F
![SER.48F SER.48F](https://chicagovalves.com/wp-content/uploads/2024/04/SER.48F.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series P48F/48F
FLANGED FORGED STEEL CLASS 150/300/600 CHECK VALVE
Size Range: ½”-1½”
Body Material: Forged Steel
Ends: Class150/300/600 Flange
Max Pressure: 1480 psi
Max Temp: 850°F
![SER.21 SER.21](https://chicagovalves.com/wp-content/uploads/2017/09/SER.21-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 21
CAST STEEL GATE VALVE
Size Range: 2”-36”
Body Material: Cast Steel WCB
Ends: Class150/300/600 Flange, BW, RTJ
Max Pressure: 1480 psi
Max Temp: 1000°F
![SER.31 SER.31](https://chicagovalves.com/wp-content/uploads/2017/06/SER.31-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 31
CAST STEEL GLOBE VALVE
Size Range: 2”-36”
Body Material: Cast Steel WCB
Ends: Class150/300/600 Flange, BW, RTJ
Max Pressure: 1480 psi
Max Temp: 1000°F
![SER.41 SER.41](https://chicagovalves.com/wp-content/uploads/2017/09/SER.41-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 41
CAST STEEL SWING CHECK
Size Range: 2”-36”
Body Material: Cast Steel WCB
Ends: Class150/300/600 Flange, BW, RTJ
Max Pressure: 1480 psi
Max Temp: 1000°F
![SER.216 SER.216](https://chicagovalves.com/wp-content/uploads/2017/09/SER.216-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 216
316 STAINLESS STEEL
FLANGED GATE VALVE
Size Range: ½”-12”
Body Material: 316 Stainless Steel
Ends: Class150/300 Flanged, BW
Max Pressure: 720 psi
Max Temp: 1000°F
![SER.316 SER.316](https://chicagovalves.com/wp-content/uploads/2017/06/SER.316-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 316
316 STAINLESS STEEL
FLANGED GLOBE VALVE
Size Range: ½”-12”
Body Material: 316 Stainless Steel
Ends: Class150/300 Flanged, BW
Max Pressure: 720 psi
Max Temp: 1000°F
![SER.416 SER.416](https://chicagovalves.com/wp-content/uploads/2017/09/SER.416-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 416
316 STAINLESS STEEL
FLANGED SWING CHECK VALVE
Size Range: ½”-12”
Body Material: 316 Stainless Steel
Ends: Class150/300 Flanged, BW
Max Pressure: 720 psi
Max Temp: 1000°F
![SER.226 SER.226](https://chicagovalves.com/wp-content/uploads/2017/06/SER.226-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 226
GATE VALVE, 200 WOG
Size Range: ½”-3”
Body Material: 316 Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 200 CWP
Max Temp: 350°F
![SER.326 SER.326](https://chicagovalves.com/wp-content/uploads/2017/06/SER.326-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 326
GLOBE VALVE, 200 WOG
Size Range: ½”-3”
Body Material: 316 Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 200 CWP
Max Temp: 350°F
![SER.426 SER.426](https://chicagovalves.com/wp-content/uploads/2017/06/SER.426-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series 426
SWING CHECK VALVE, 200 WOG
Size Range: ½”-3”
Body Material: 316 Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 200 CWP
Max Temp: 350°F
Controls
![SER.CXL.R22 SER.CXL.R22](https://chicagovalves.com/wp-content/uploads/2022/02/SER.CXL_.R22-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)

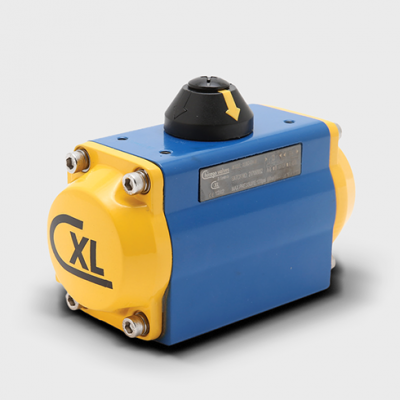

Series CXL
PNEUMATIC ACTUATOR
• Anodized body & ends
• Epoxy Polyester Coating
• Nickel Plated alloy steel pinion
• Die-Cast Pistons
• Adjusting Travel
• Preloaded Springs
![SER.CLS.300.R22 SER.CLS.300.R22](https://chicagovalves.com/wp-content/uploads/2022/02/SER.CLS_.300.R22-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series CLS 300
LIMIT SWITCH, NEMA 4 and 4X
• Design complies with NEMA 4 and 4X
• Dual ½” NPT cable entries
• Complies to NAMUR mounting standards
• NAMUR abd ISO 5211 adjustable bracket
• Spring-loaded splined cams are easily _adjustable without tools
• Stainless Steel Fasteners
![rotork.sx rotork.sx](https://chicagovalves.com/wp-content/uploads/2024/05/rotork.sx_.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series ROTORK SX
EXPLUSION PROOF LIMIT SWITCH
• Design complies with NEMA 4 and 4X
• Dual ½” NPT cable entries
• UL certified box
• 2 switch device
• Marking: cULus class 1/2 div 1
• Chromated aluminium heavy duty
• -4 to +176°F (-20 to +80°C)
![SER.GCO SER.GCO](https://chicagovalves.com/wp-content/uploads/2017/06/SER.GCO_-400x400.png)
![](https://chicagovalves.com/wp-content/uploads/2019/06/gear-icon100.png)
Series CGO
GEAR OPERATOR
Torque range 1325-132,760 In-Lbs
ISO 5211 mounting dimensions
Chain Wheel operation available
![CVE CVE](https://chicagovalves.com/wp-content/uploads/2024/11/CVE-400x400.png)
Series CVE
ELECTRIC ACTUATORS
• Compact and light Aluminum housing
• Hard anodizing – corrosion resistance
• Output torque 176–79200 in-Lbs
• Wide range of Voltage: DC/AC 1ph/3ph
• Self locking functionality
• Manual operation Handle-Wheel
• ISO 5211 Mounting
• 4 limit switches (operation/extra Dry)
• Torque switches
• Space heater with thermostat
• Removable drive bushing
• NAMUR abd ISO 5211 adjustable bracket
